Introduction:
Parameters:

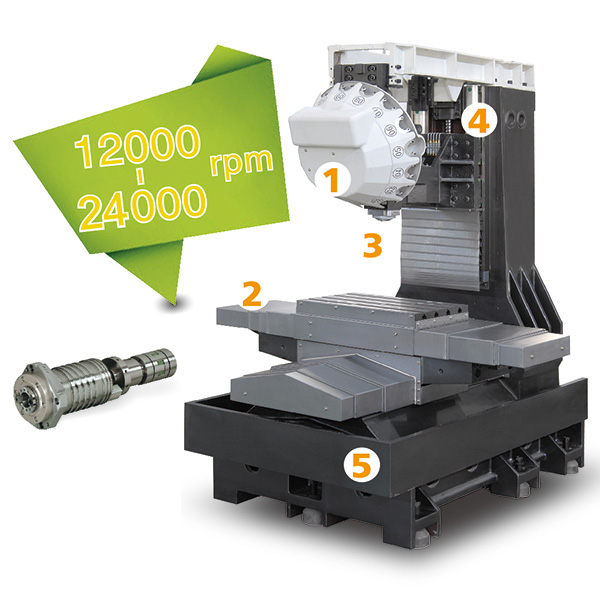

1. Automatic tool exchange system
The inclined disc knife magazine operates efficiently, at high speed, stable, and easy to maintain.
2. 48 meter rapid escort
Adopting Taiwanese made ball screws, coupled with advanced linear slides, the shaft motion has low thermal displacement and high precision.
3. 24000 RPM straight spindle
BT30 straight type high-speed spindle, with world-class SKF and NSK bearings used internally. Adopting a floating blade design ensures that the bearing is not subjected to force during the blade loosening process, thereby improving the service life of the bearing. The spindle has low vibration, low noise, and strong cutting ability.
4. Z-axis enlarged screw, no counterweight design
The Z-axis adopts an enlarged screw design, directly replacing the head counterweight mechanism, enhancing the handling performance of the head during high-speed up and down movement, more suitable for the needs of high-speed drilling and tooth tapping, and eliminating overcutting during milling, resulting in high surface smoothness of the workpiece.
5. Optimize the base structure
The integrated base fully supports the worktable and the machine body, equipped with a high flow chip flushing system and chip rolling screw, ensuring smooth overall operation of the machine and achieving the highest output capacity.
The inclined disc knife magazine operates efficiently, at high speed, stable, and easy to maintain.
2. 48 meter rapid escort
Adopting Taiwanese made ball screws, coupled with advanced linear slides, the shaft motion has low thermal displacement and high precision.
3. 24000 RPM straight spindle
BT30 straight type high-speed spindle, with world-class SKF and NSK bearings used internally. Adopting a floating blade design ensures that the bearing is not subjected to force during the blade loosening process, thereby improving the service life of the bearing. The spindle has low vibration, low noise, and strong cutting ability.
4. Z-axis enlarged screw, no counterweight design
The Z-axis adopts an enlarged screw design, directly replacing the head counterweight mechanism, enhancing the handling performance of the head during high-speed up and down movement, more suitable for the needs of high-speed drilling and tooth tapping, and eliminating overcutting during milling, resulting in high surface smoothness of the workpiece.
5. Optimize the base structure
The integrated base fully supports the worktable and the machine body, equipped with a high flow chip flushing system and chip rolling screw, ensuring smooth overall operation of the machine and achieving the highest output capacity.

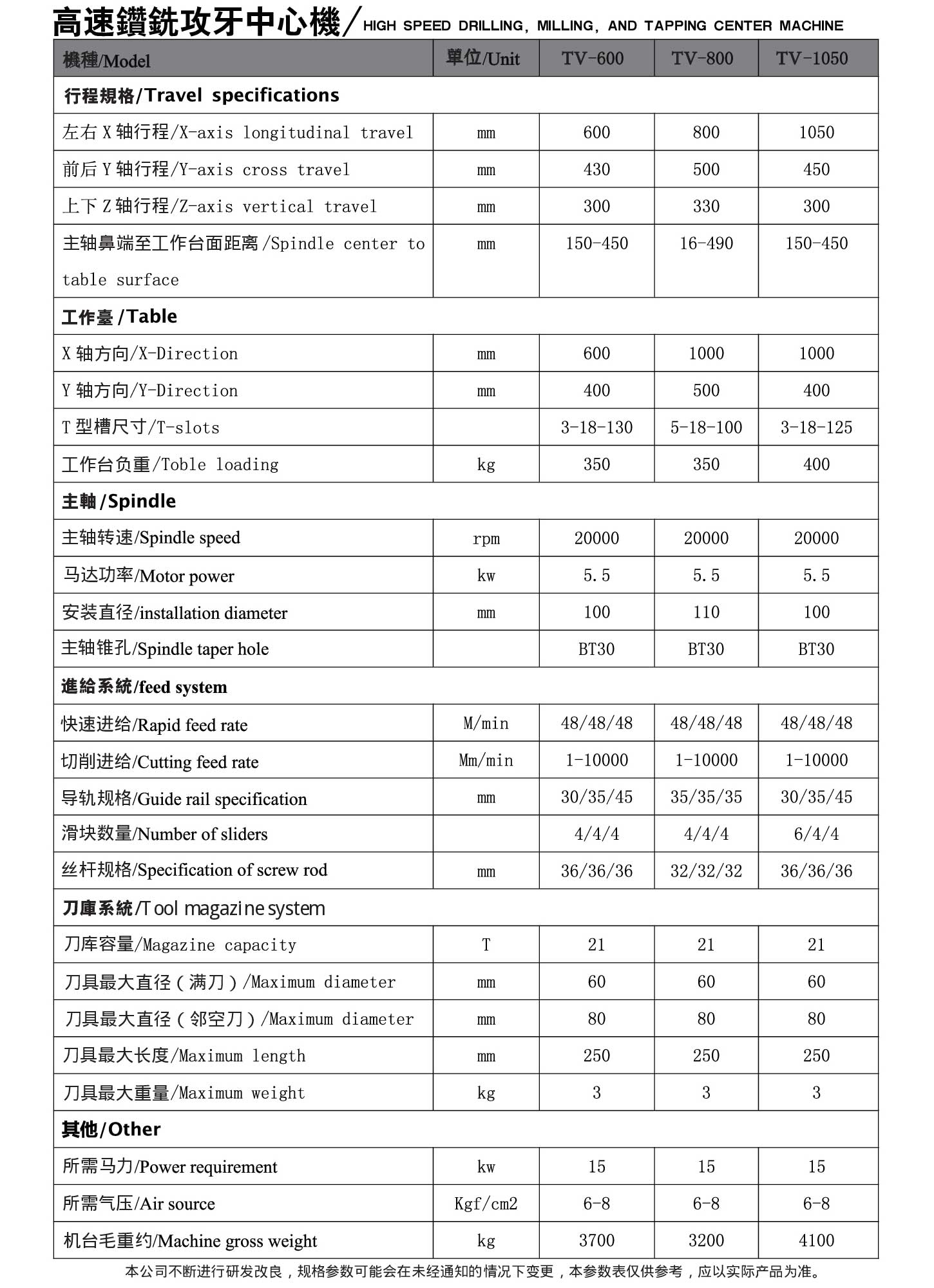

Specifications:
Video:
